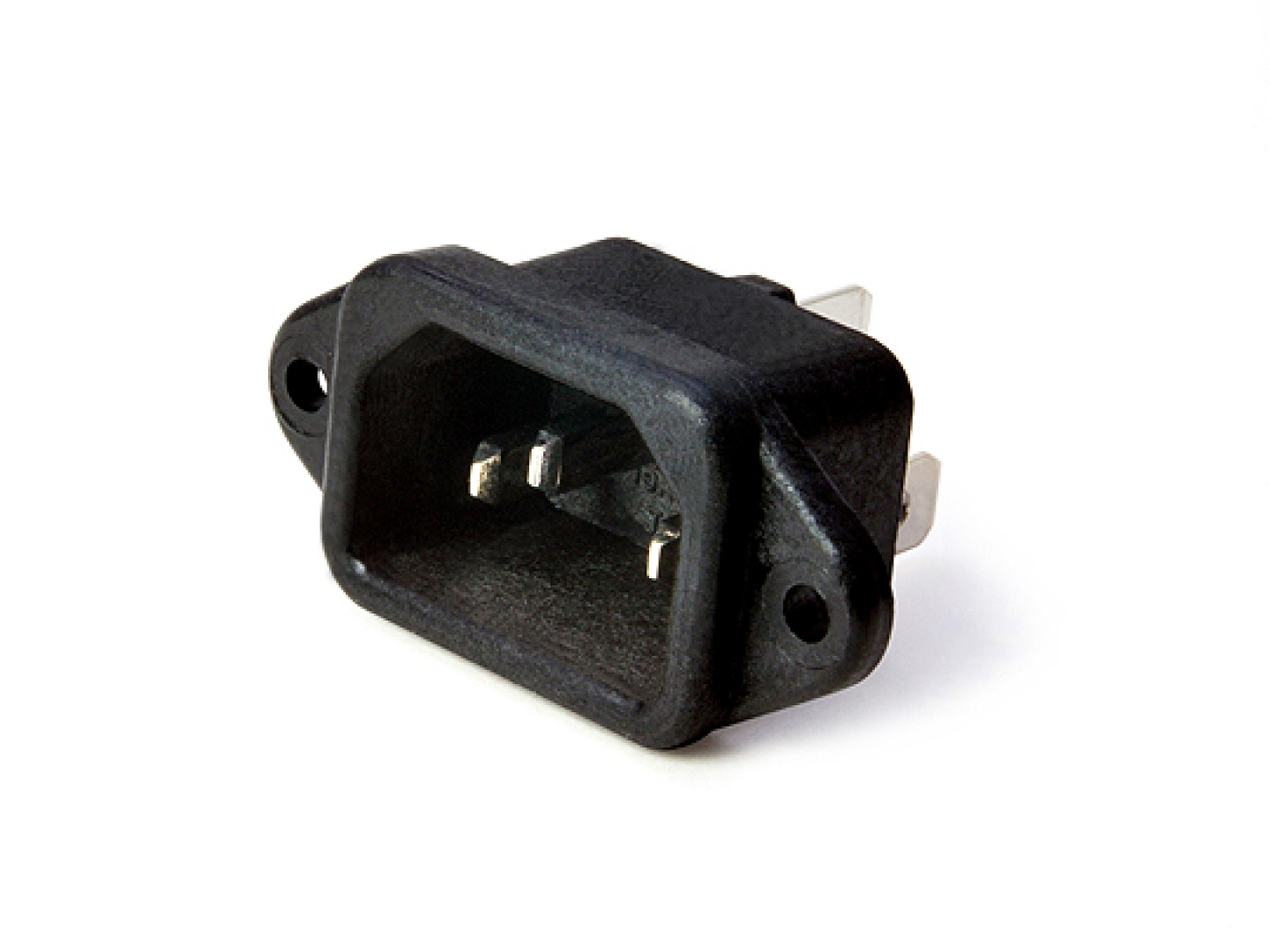

Power Inret R is the original IEC 320 power inlet which is widely usedfor many types of audio equipment. We pursued to produce the best Inleton the market. Because it is very simply composed by just a housing andblades, the quality is totally depends on material and method ofproduction.

The housing is made by 30% glass filler PBT which has the quality todurability, vibration absorption, and heat resistance. And because ofthe wider cable attaching portion, it makes soldering work easiercompared to regular power inlet.
The blade is trimmed down from a board made by phosphor bronze. And,after hand polished, it is plated by platinum and palladium platingwhich is the best combination we thought after repeated tests withprototypes.

Power Inret R contributes truly lossless power transmission. You would be so surprised by this small piece of components.

■ 30% Glass filled PBT housing
The resin which composed the housing of Power Inret R is made by 30%Glass filled PBT. Since it is excellent in heat resistance, it makessoldering easier without deformation or damage by heat of solderingiron.


■ Dimension of a mounting hole
Mounting hole : （20ｘ27.5　R4）
Screw : 3mm



BLADE（Contact）

■ Precision trimming work
The blade of Power Inret R is produced not by press working but bytrimming down from a bronze board made by phosphor bronze which hasalready proved its quality applied for our power receptacles and powerplugs.

The contacts Power Inret R （before plating）

■ The surface
The external part of blade is finished by hand polishing for improvementof conduction. On the other hand, the internal part of blade purposelyisn’t polished to leave asperity better adhesion of solder.

■ Platinum + Palladium plating
The plating on the blades of Power Inret R is the combination ofplatinum and palladium which is applied to our premium models such as R1wall receptacle and M1/F1 power plug/connector. It has proved itssuperior quality by many feedbacks and reputations from customers.

■ Wider cable attaching portion for easy soldering operation
The internal part of the blade which works as cable attaching portion ismade wider for easy soldering operation. It also makes internal wiringby faston terminals easier and keeps maximum contact area.

Max diameter for stranded wire : 3.5sq
Max diameter for single wire : φ2.6

SPEC Power Inlet R

Model	Power Inret R
Material of blade	Phosphor bronze
Plating	Platinum + Palladium
Faston Terminals	JIS　F6.35（connedted to inner side of the blade）
Body	30% Glass filled PBT
Weight	13.5ｇ
Volt/Amp	125V・15A (CSA) 250V・10A (VDE,SEMKO,KEMA,etc)
Withstand Voltage	AC 2,000V/1min
Heat resistance	94V-0　E45034
Appropriate screw：	3mm x 2
Dimension of a mounting hole	20mm ｘ 27.5mm　R4
Applicable standard	IEC320(EN60320)/EN60320/CSA22.2 No.182.3M/JIS
